AGM Rattler-C V2 19-256

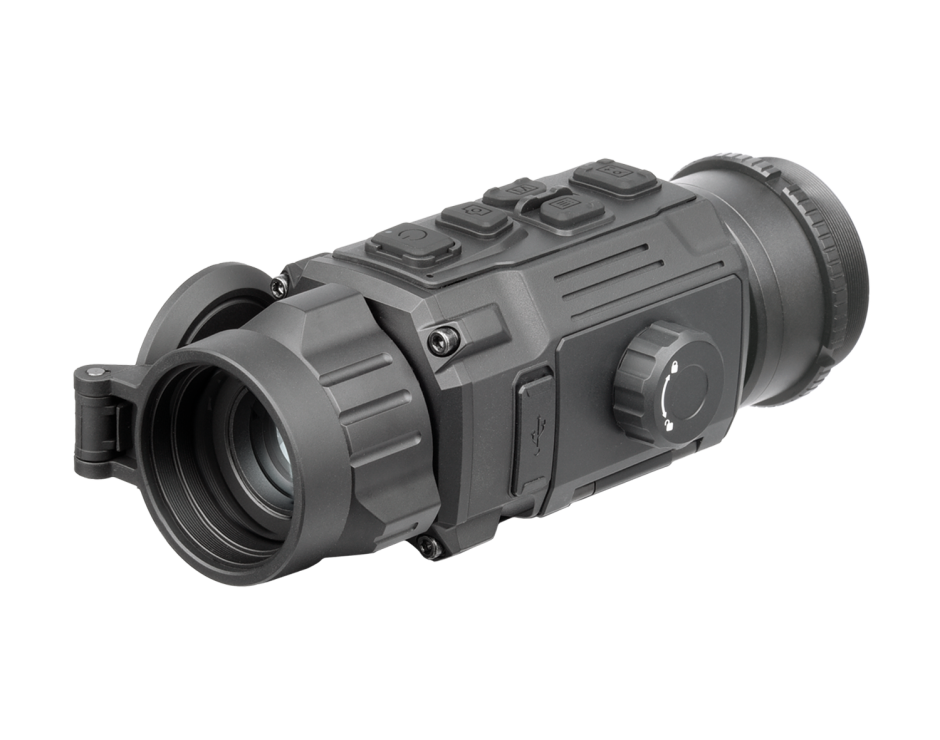

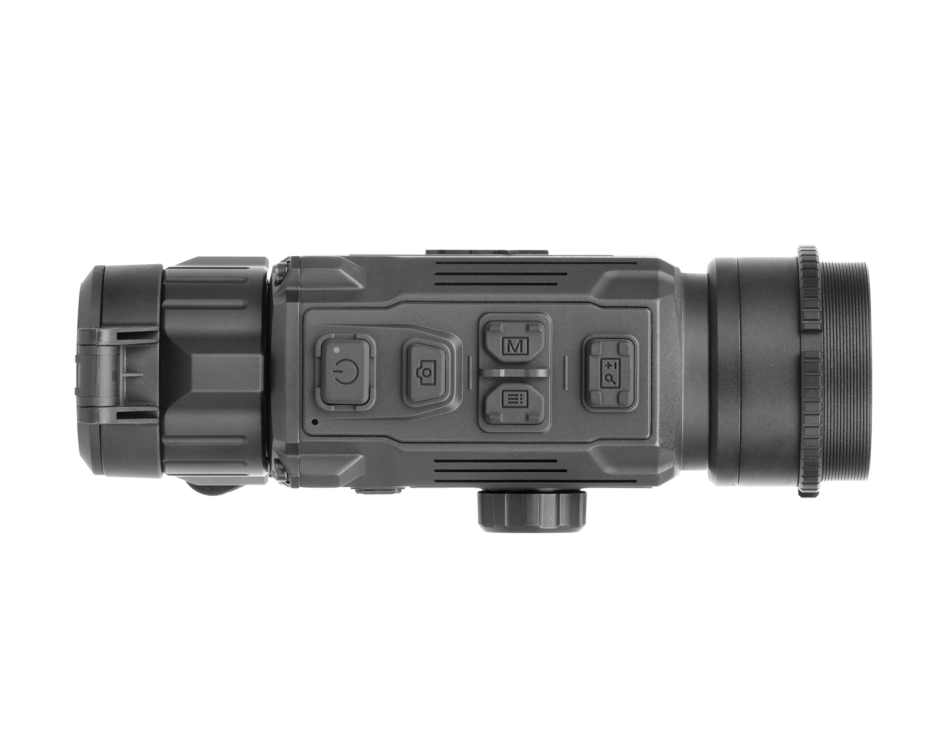

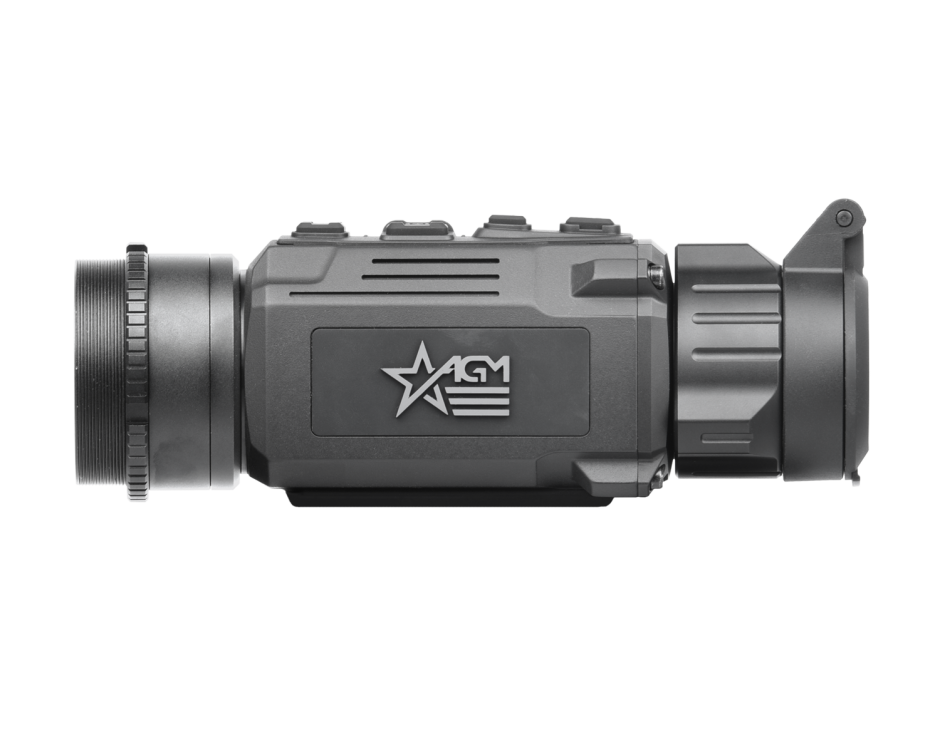

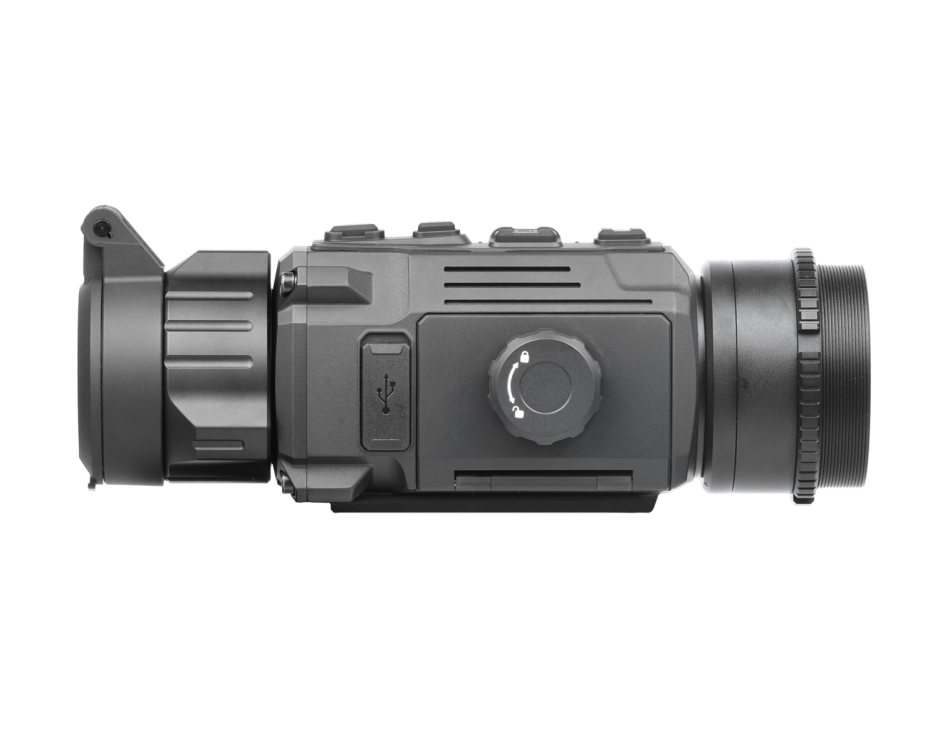

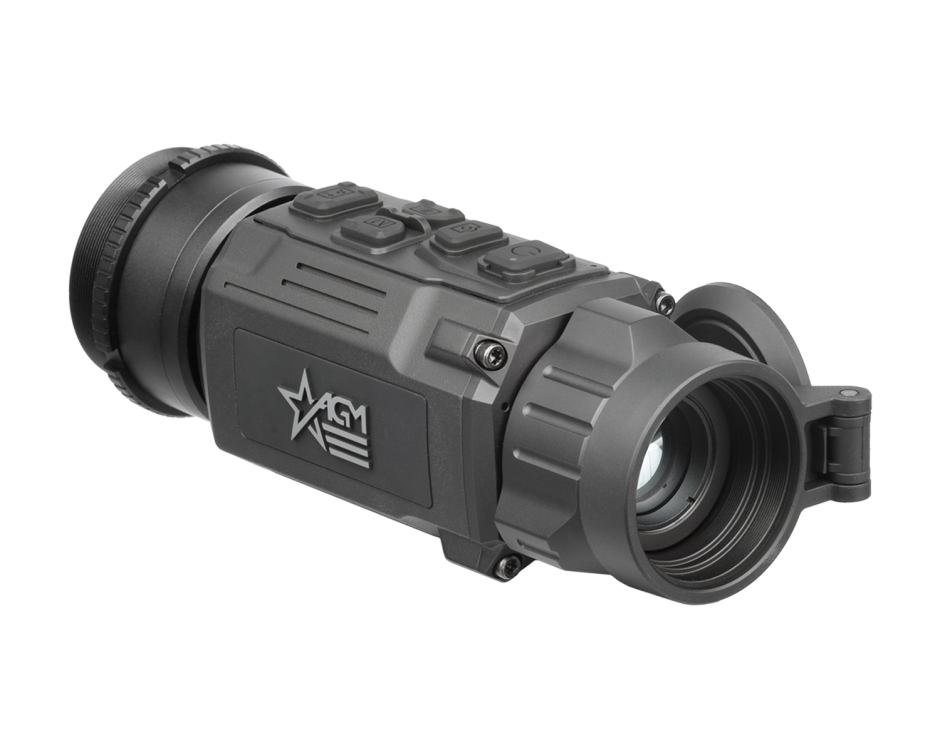

AGM’s Rattler‑C V2 19‑256 is a compact thermal clip‑on designed to mount in front of your existing riflescope. It uses a 256×192 12‑µm detector paired with a 19 mm f/1.0 lens to deliver 1× optical magnification and a wide 9.3° × 6.9° field of view. Although it lacks a laser rangefinder or ballistic calculator, the V2 series adds shot‑activated recording, a simplified menu system and a rechargeable NE‑4400 battery that provides up to 11.5 hours of runtime.

The unit records video and audio to 16 GB of internal memory, offers Wi‑Fi streaming and features multiple colour palettes, digital zoom and a stadiametric rangefinder for estimating distance.

Recording
Weapon
Mounted
5 Year
Warranty
WiFi
Hot Spot
AGM
Battery
MSRP: $975.00
PRICE: $894.70

  • Is This the Right Thermal for You?:

    The 19‑256 is ideal for hunters who want to dip their toes into thermal imaging without replacing their day optic. It provides reliable detection of hog‑ or human‑sized targets out to about ~1 km and offers a generous field of view for close‑ to mid‑range work. Its rechargeable battery and lightweight design (≈0.5 kg) make it easy to carry. If you require a built‑in laser rangefinder or higher resolution, consider the Secutor LRF‑C or the 35‑ or 50‑mm Rattler‑C variants.

  • Best For:

    • Hunters who want an affordable clip‑on to convert an existing riflescope to thermal
    • Night shooters requiring long battery life (~11.5 h) and a wide field of view
    • Users who don’t need a built‑in rangefinder or ballistic calculator

  • Not Ideal For:

    • Those who need precise ranging; the unit only includes a stadiametric estimator
    • Shooters seeking higher resolution and longer detection range – consider the 35‑384 or 50‑640 Rattler‑C models
    • Users who prefer proprietary rechargeable battery packs for extended use

  • How This Model Compares:

    Within the Rattler‑C family, the 19‑256 is the entry‑level clip‑on. It offers the widest field of view but the lowest resolution and detection range. The 35‑384 uses a higher‑resolution sensor and 35 mm lens to extend detection to ~1.8 km, while the 50‑640 pushes out to ~2.6 km with a 640×512 core. All share the same housing, menu and long‑lasting NE‑4400 battery.

    Compared to the 35‑384 clip‑on, the 19‑256 has a lower‑resolution sensor and shorter detection range but a wider field of view and longer battery life. The 50‑640 delivers even sharper images and nearly triple the detection distance but at higher cost and slightly reduced runtime.

  • What You Actually Get in Real-World Use:

    Users appreciate the 19‑256’s simple mounting system and the ability to switch between day and thermal vision without re‑zeroing. The wide field of view makes scanning brush and bait stations easy. Image detail is modest, as expected from a 256×192 sensor, but adequate for identifying hogs and varmints within a few hundred yards. The rechargeable battery often exceeds ~11 hours in the field, and the menu layout is straightforward. The lack of a laser rangefinder means you must rely on the stadiametric reticle or a separate rangefinder for precise distances.

  • FAQS

    • How do I mount the Rattler‑C V2 on my day scope?
      The unit attaches to your riflescope's objective using the included quick‑release mount or optional adapter rings. Once aligned, it displays the same reticle and zero as your day optic, so you don't need to re‑zero your rifle.
    • What is the effective detection range of the 19‑256?
      It can detect a 6‑foot target at around 1,000 meters under ideal conditions. Identification ranges are shorter, typically a few hundred meters. The device does not include a laser rangefinder but offers a stadiametric reticle for approximate distance estimation.
    • How long does the battery last and can I replace it?
      The Rattler‑C V2 uses a rechargeable NE‑4400 battery that provides up to 11.5 hours of use. You can swap batteries in the field or power the unit via its USB‑C port.
    • Does it record video and transfer files?
      Yes. It records video and audio to 16 GB of internal memory. You can transfer files to a computer via USB or stream live using the Wi‑Fi hotspot.
    • Is this device weatherproof?
      AGM rates the Rattler‑C V2 at IP67, making it waterproof and dustproof. It's also shock‑rated to withstand recoil from common hunting cartridges and comes with a five‑year warranty.

  • Key Features at a Glance:

    • Clip‑on thermal module with 256×192 12‑µm sensor
    • 19 mm f/1.0 lens; 1× optical magnification with digital 1×/2×/4×/8× zoom
    • Wide 9.3° × 6.9° field of view for close‑ to mid‑range use
    • Rechargeable NE‑4400 battery provides up to 11.5 h runtime
    • On‑board video/audio recording and Wi‑Fi streaming to 16 GB memory
    • Multiple color palettes, shot‑activated recording and stadiametric rangefinder
    • IP67 waterproof rating and 5‑year AGM warranty

  • Detailed Product Description:

    Transform your favourite day optic into a thermal sight with AGM’s Rattler‑C V2 19‑256 clip‑on. At its heart is a 256×192 VOx microbolometer that provides basic heat detection out to roughly a kilometre. A 19 mm f/1.0 objective delivers a 9.3° × 6.9° field of view and 1× optical magnification, so your scope’s eye relief and reticle remain unchanged. The V2 generation adds shot‑activated recording, a streamlined menu and a rechargeable NE‑4400 battery capable of running more than eleven hours. Footage and stills are stored on 16 GB of internal memory and can be accessed via Wi‑Fi or USB. Although it doesn’t have a laser rangefinder, a stadiametric ranging tool helps estimate distance. Built from durable aluminium and sealed to IP67 standards, the Rattler‑C V2 19‑256 is a rugged, cost‑effective way to add thermal capability to your rifle.

  • Technical Specifications:

    • Sensor: 256×192 VOx (12 µm), NETD <20 mK
    • Lens: 19 mm f/1.0; field of view 9.3° × 6.9°
    • Magnification: 1× optical; digital zoom 1×/2×/4×/8×
    • Detection Range: ≈1,000 m (6‑foot target)
    • Battery: NE‑4400 rechargeable (>11.5 h)
    • Recording & Storage: 16 GB internal memory; video/audio with shot‑activation
    • Features: Wi‑Fi hotspot, multiple colour palettes, stadiametric rangefinder
    • Weight: ~0.5 kg; IP67 waterproof and recoil‑rated
