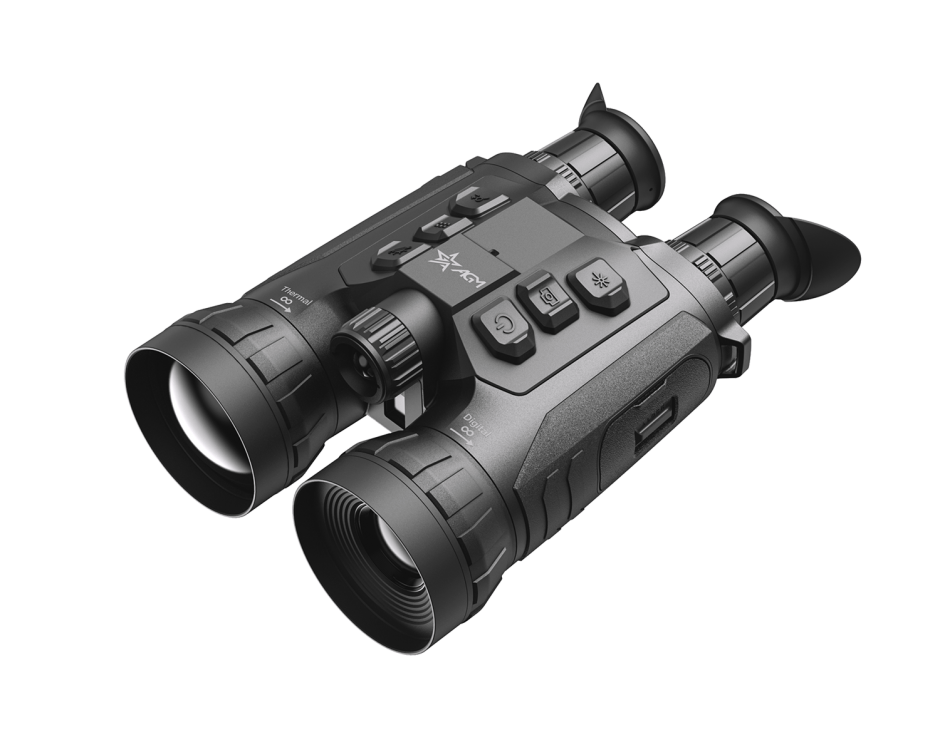

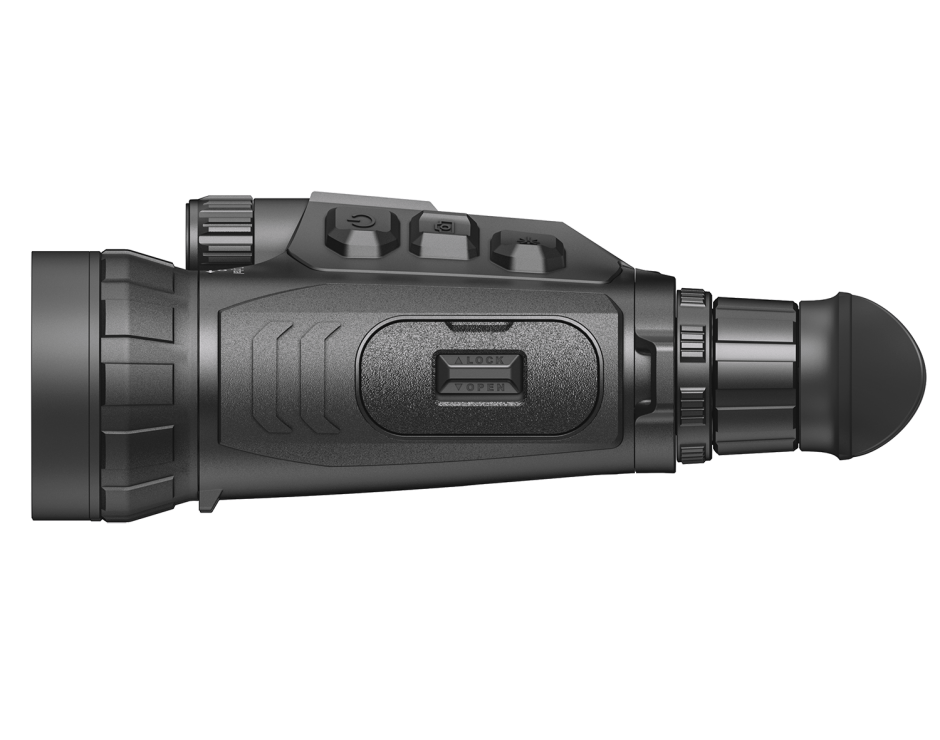

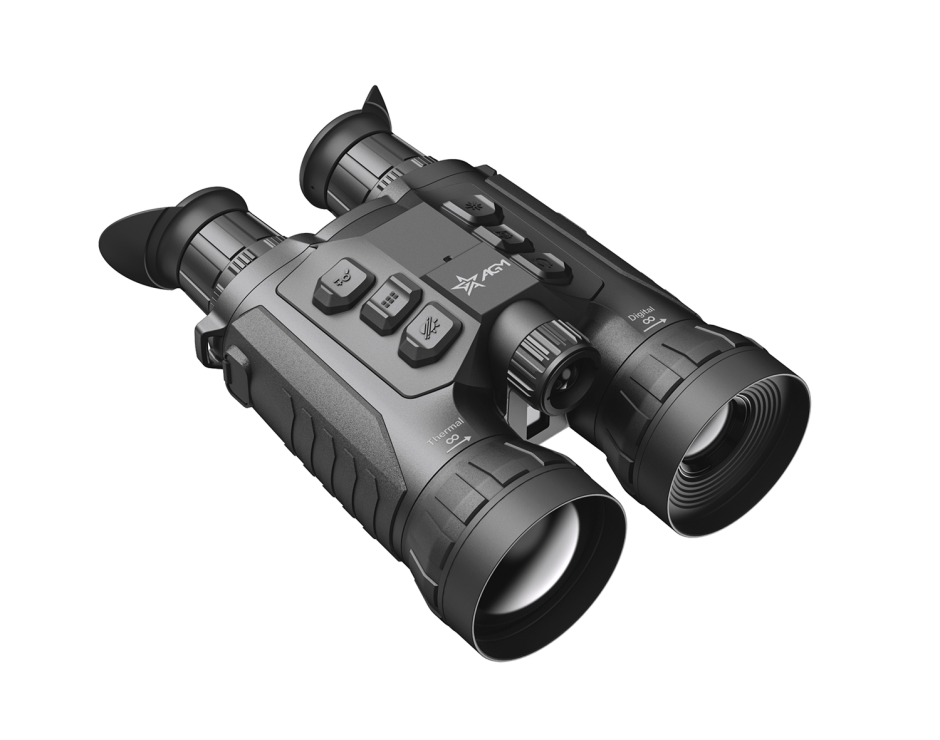

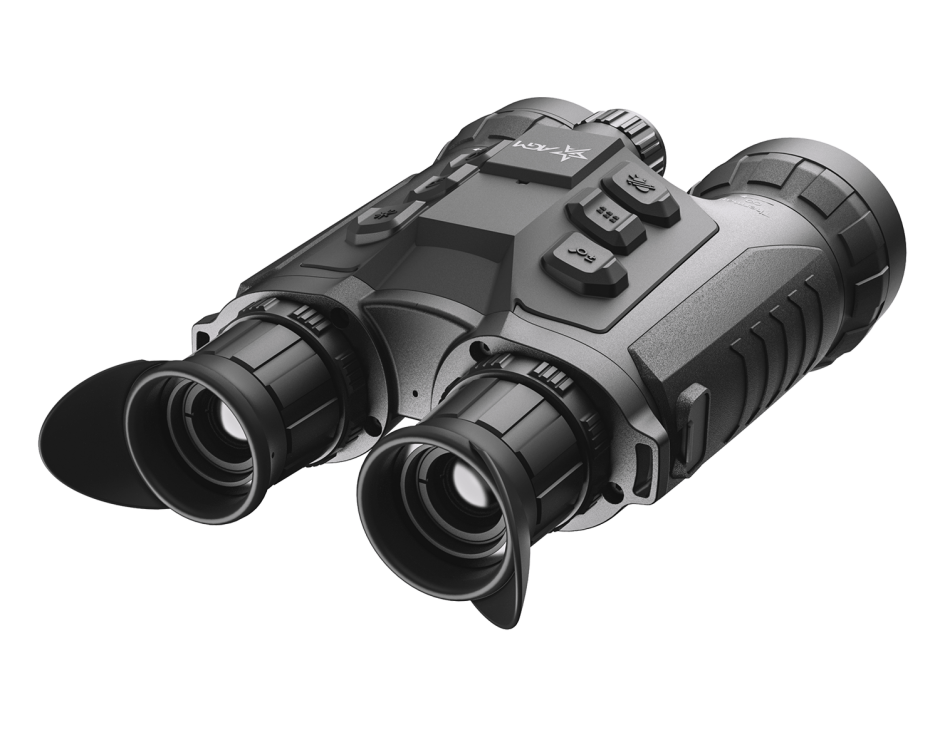

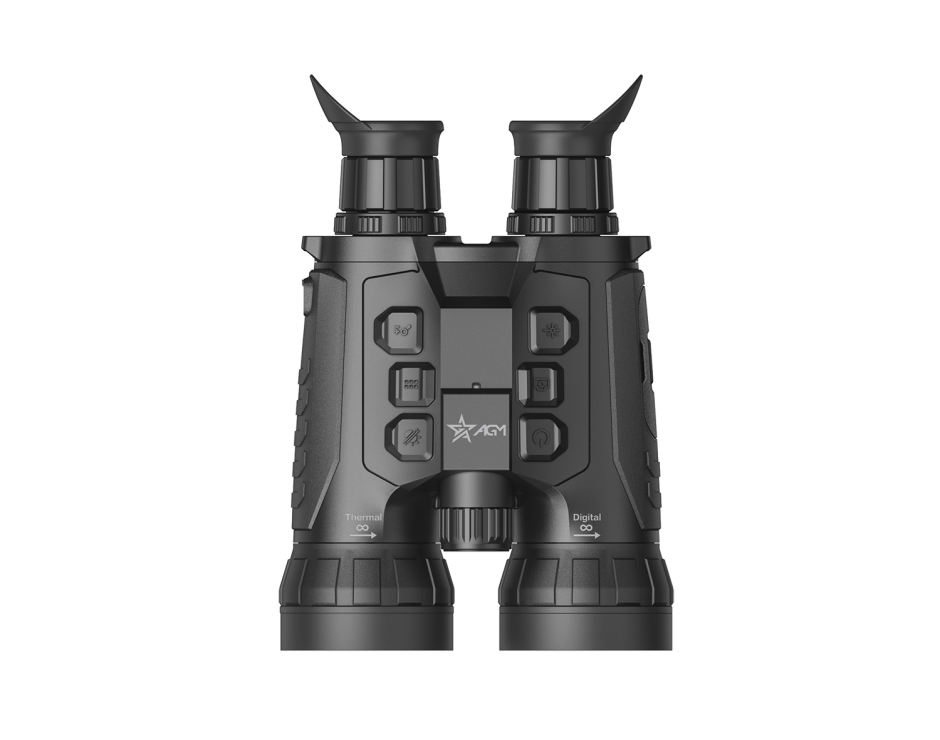

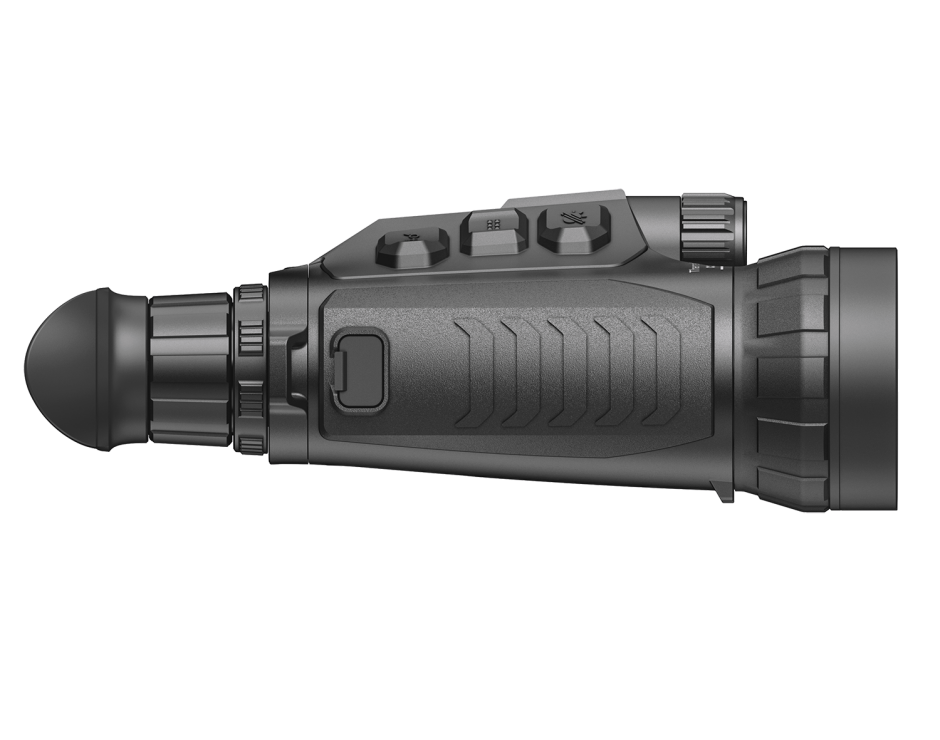

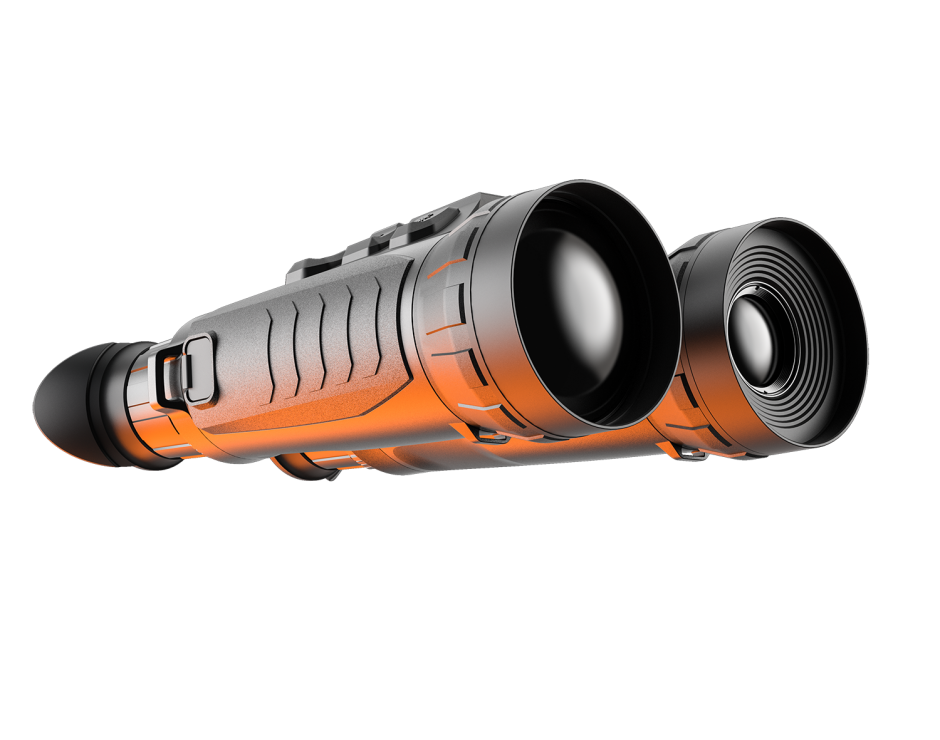

AGM ObservIR LRF 60-1280

AGM’s ObservIR LRF 60‑1280 is a flagship dual-spectrum binocular designed for users who need maximum thermal detail. Its 1280×1024 VOx sensor and 60 mm f/1.0 objective deliver a wide 14.6°×8.8° field of view and can detect a human-sized target at roughly 3.1 km.

An integrated eye-safe 1,000 m laser rangefinder assists with distance estimation, and the digital channel employs a 4K CMOS sensor with a 60 mm f/2.2 lens and built-in IR illuminator. Despite the high resolution, the 60‑1280 still offers multiple thermal palettes, GPS, compass, picture-in-picture and hot-track features.

Up to 64 GB of internal storage records video and audio, and the removable Li-ion battery pack provides about 7.5 hours of runtime. The rugged magnesium housing is IP67-rated and carries a five-year warranty.

Recording
Hand
Held
5 Year
Warranty
WiFi
Hot Spot
18650
Battery
Laser Range
Findver
MSRP: $8,495.00
PRICE: $6,995.00

  • Is This the Right Thermal for You?:

    If you demand the sharpest thermal imagery for locating and identifying distant objects, the 60‑1280 sits at the top of the ObservIR range. Its 1280×1024 sensor produces exceptional detail and the 14.6°×8.8° field of view covers more ground than the 50 mm model. The built-in rangefinder and GPS support precise distance and location data, making this unit ideal for long-range hunting, search-and-rescue and law enforcement. Keep in mind that the increased resolution reduces the frame rate to 25 Hz and battery life to about 7.5 hours, and the binocular still isn’t designed for weapon mounting.

  • Best For:

    • Extreme-range observation and surveillance where detection out to ~3.1 km is required
    • Professional users needing the highest resolution thermal imagery for identification tasks
    • Hunters and teams who rely on integrated rangefinding, GPS and recording features
    • Scenarios where a heavier binocular is acceptable in exchange for better image quality

  • Not Ideal For:

    • Weight-sensitive applications or backpacking trips where a lighter optic might be preferred
    • Users who don’t need more than a 2.6 km detection range or a 640 sensor (the 50‑640 is more affordable)
    • Rapid frame-rate tasks (the 60‑1280 runs at 25 Hz vs 50 Hz on lower-resolution models)

  • How This Model Compares:

    The 60‑1280 represents the high-resolution end of the ObservIR line. It doubles the pixel count of the 50‑640 and increases the field of view and detection range to about 3.1 km. However, the higher resolution sensor operates at 25 Hz rather than 50 Hz and battery life drops slightly to 7.5 hours. Compared with the entry-level 25‑256 and mid-tier 35‑384, the improvement in clarity and range is dramatic, but those models are lighter and more affordable.

    • Versus OBSE50-640-LRF: 60‑1280 has a 1280×1024 sensor and 3.1 km detection vs 640×512 sensor and 2.6 km; the 50‑640 offers a 50 Hz frame rate and longer 8.5 hour battery.
    • Versus OBSE35-384-LRF: The 60‑1280 provides four times the pixels and a significantly wider field of view; the 35‑384 is lighter and less expensive.
    • Versus OBSE25-256-LRF: The 60‑1280 is in a different league for range and resolution; the 25‑256 is more compact and entry-level.

  • What You Actually Get in Real-World Use:

    Field reports note that the 60‑1280’s 1280×1024 sensor produces extremely detailed thermal images with excellent contrast. The broad 14.6°×8.8° field of view makes it easier to scan large areas without constant panning. The built-in laser rangefinder is accurate and quick, though you’ll need a steady hold for long-distance measurements. Battery life of around 7.5 hours is sufficient for evening hunts or patrols, and the removable battery pack means you can swap in a spare. The increased sensor resolution does increase the price and reduces the frame rate to 25 Hz, so fast-moving animals may appear less fluid compared with the 50‑640 model. At over 0.8 kg, it’s best used with a tripod for extended sessions.

  • FAQS

    • What is the detection range of the ObservIR LRF 60‑1280?
      The thermal channel can detect a six-foot object at roughly 3,100 m and the integrated laser rangefinder measures distance up to 1,000 m with ±1 m accuracy.
    • How does the 1280×1024 sensor improve performance?
      The higher resolution sensor captures four times more pixels than a 640 sensor, producing sharper images and a wider field of view.
    • What is the battery life and power setup?
      A removable Li-ion battery pack powers the unit for about 7.5 hours when Wi-Fi, IR and the rangefinder are off. An extra battery is included and the binocular supports USB-C external power and fast charging.
    • Does the ObservIR 60‑1280 include ballistic calculation?
      No. It includes a precise laser rangefinder, GPS and compass but does not perform ballistic calculations; you can pair it with your preferred ballistic app.
    • Is the unit waterproof?
      Yes. The housing is rated IP67, meaning it is dustproof and submersible to one metre for 30 minutes.

  • Key Features at a Glance:

    • 1280×1024, 12 µm thermal sensor with sub-18 mK sensitivity
    • 60 mm f/1.0 thermal lens; field of view 14.6°×8.8°; magnifications 2.5×/5×/10×/20×
    • Integrated 1,000 m laser rangefinder and long-range IR illuminator
    • 4K digital channel (3840×2160 CMOS) with 60 mm f/2.2 lens
    • GPS, digital compass, picture-in-picture, hot-track and multiple colour palettes
    • 64 GB internal memory with video/audio recording and Wi-Fi hotspot
    • Replaceable Li-ion battery pack; approx. 7.5-hour runtime; USB-C fast-charging
    • IP67 waterproof rating and five-year warranty

  • Detailed Product Description:

    The AGM ObservIR LRF 60-1280 combines a 1280×1024 thermal detector and a 60 mm f/1.0 lens with a separate 3840×2160 digital day/night channel. Its 2.5× thermal base magnification and 14.6° × 8.8° field of view provide a broad starting image for outdoor observation. The thermal channel runs at 50 Hz, with viewing through a 1920×1080 OLED display.

    Integrated laser ranging, GPS, a digital compass and an IR illuminator add useful field functions. Video and audio recording, 64 GB storage, Wi-Fi and picture-in-picture make it possible to document and review observations.

    One removable NE-7255 rechargeable battery pack powers the device, with two supplied. AGM rates runtime at up to six hours at 25°C with Wi-Fi off and the rangefinder on. USB-C supports external power. The IP67-rated binocular format suits buyers prioritizing detector resolution while retaining digital viewing and distance measurement in one device.

  • Technical Specifications:

    • Thermal sensor: 1280×1024, 12 µm VOx; NETD <18 mK
    • Lens: 60 mm f/1.0; field of view 14.6°×8.8°
    • Thermal magnification: 2.5×/5×/10×/20×
    • Detection range: approx. 3,100 m for a 6-ft target
    • Digital channel: 3840×2160 CMOS sensor; 60 mm f/2.2 lens; magnification 5.5×/11×/16.5×/22×
    • Integrated eye-safe laser rangefinder: 1,000 m ±1 m accuracy
    • Storage: 64 GB EMMC; video and audio recording; Wi-Fi streaming
    • Battery: replaceable Li-ion battery pack; approx. 7.5-hour runtime
    • Weight: around 0.79 kg; IP67 rating; operating temperature –22 to +131°F
